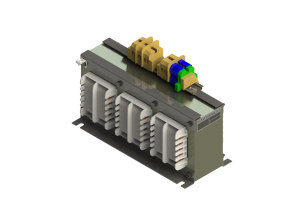

Three phase transformer
Construction
- Power 1000VA do 500kVA
- Voltage max. 6,3kV
- Temperature class F
- Supply frequency max. 400Hz
- Magnetic circuit
- Assembled magnetic circuit
- Unicore
- C core
Orientation table of dimensions and weights of transformers (± 10%)

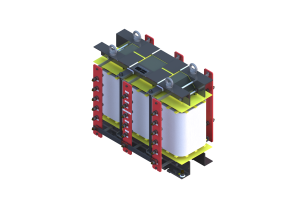

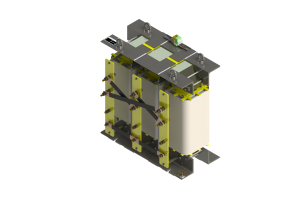

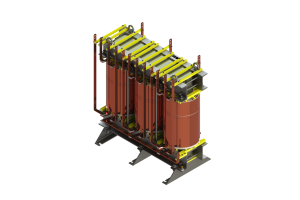

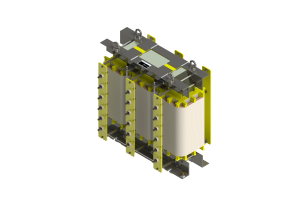

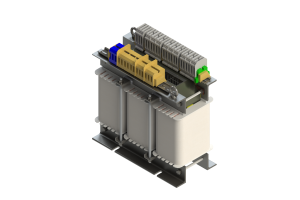

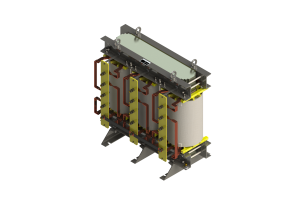

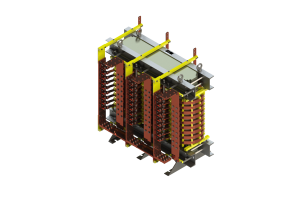

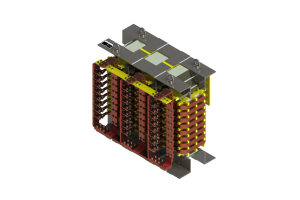

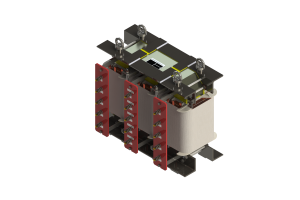

| 3F Transformer - Unicore |  | - Power to 100kVA
- Transformation ratio in any combination to 6,3kV
- Transformer taps accroding to customers requirements
- Basic protection IP00
|  |  |
| Titel | Eigenschaften und Proportionen | | A | B | C | Gewicht | | 3kVA 3TRC.40.60 | 295 | 231 | 119 | 35kg | | 8kVA 3TRC.50.80 | 368 | 286 | 154 | 74kg | | 10kVA 3TRC.60.75 | 441 | 341 | 162 | 99kg | | 25kVA 3TRC.70.100 | 517 | 396 | 203 | 180kg | | 100kVA 3TRC.110.125 | 809 | 616 | 283 | 550kg | | 50kVA 3TRC.90.110 | 663 | 506 | 240 | 325kg | | 80kVA 3TRC.100.125 | 736 | 561 | 270 | 455kg |
|
