Single-phase trasformers

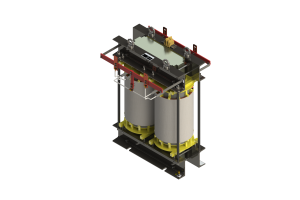

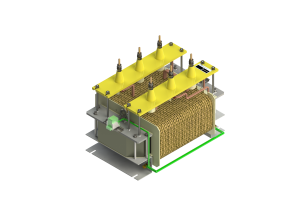

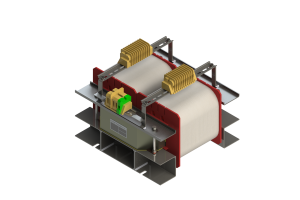

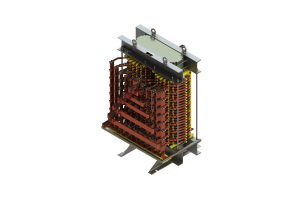

  Construction

• Power 1000VA to 500kVA
• Voltage max. 6,3kV
• Temperature class F

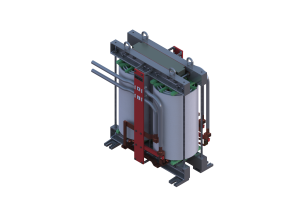

• Supply frequency max. 400Hz
• Magnetic circuit

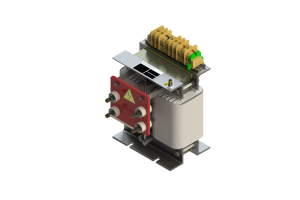

  • Assembled magnetic circuit
  • Unicore
  • C core


Orientation table of dimensions and weights of transformers (± 5mm)

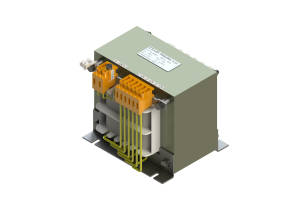

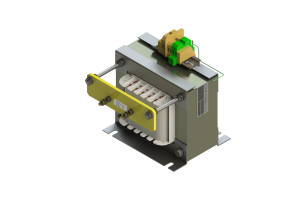

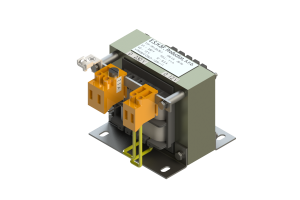

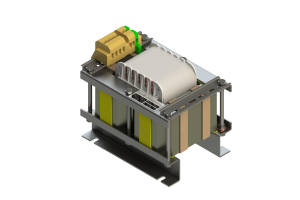

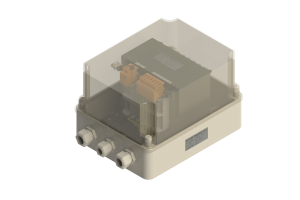

One-phase Transformer - type EI Power 0,5kVA -2,6kVA Transformation ratio in any combination to 1000V Transformer taps accroding to customers requirements Higher voltage on request Basic protection IP00 Title Characteristics and dimensions A B C Weight 0,5kVA TR1.50.50 130 150 94 8kg 1kVA TR1.50.80 130 150 124 13,5kg 1,8kVA TR1.64.80 165 192 154 21,5kg 2,6kVA TR1.64.100 165 192 174 26kg

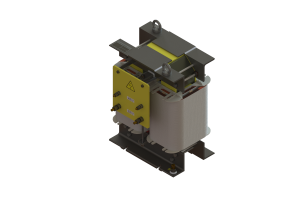

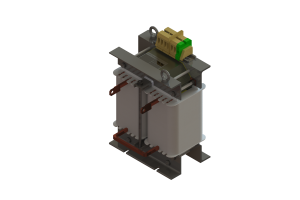

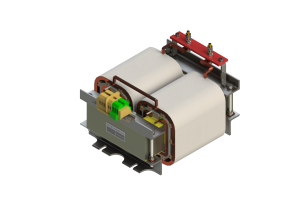

1f Transformer Unicore Power to 100kVA Transformation ratio in any combination to 6,3kV Transformer taps accroding to customers requirements Basic protection IP00 Title Characteristics and dimensions A B C Weight 3kVA 1TRC.50.60 246 286 132 36kg 8kVA 1TRC.60.80 294 341 167 69kg 10kVA 1TRC.60.90 294 341 178 78kg 25kVA 1TRC.80.105 394 451 222 161kg 50kVA 1TRC.100.120 491 561 264 287kg 80kVA 1TRC.100.140 539 616 299 404kg 100kVA 1TRC.120.140 588 671 312 481kg
